Aigi – Fishbone Gasket

Replace ALL Spiral Wound Gaskets & Camprofile Gaskets !

1,000,000 times lower leakage than TA-LUFT Test limit
25 times lower leakage than CFET Test limit
Pass API 6FB Fire Test

Design

Helical concentric bevelled ribs,
each side covered with Graphite, PTFE or Mica.
Unitary design with or without a centering ring.
Rounded, non-sharp contact surface.
Unique Stop-Step design

Advantages

Internally self-energized and by fluid pressure
for better sealing performence
Interchangeable with all spiral wound gaskets and Camprofile gaskets
Will not damage flange like Camprofile gaskets and spiral wound gaskets
Prevents over-compression of sealing element

Your content goes here.

Related Products

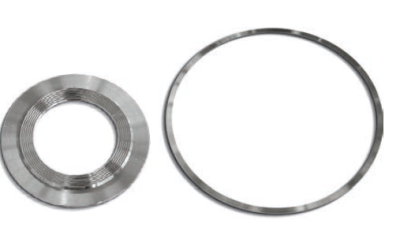

Aigi – Kammprofile Gasket

AIGI Environmental Inc.'s kammprofile gaskets are semi metallic gaskets that can beused for most applications from low to very high pressure. The gaskets consist of ametal core with corrugated grooves and a soft layer of sealing material bonded toeither face. The...

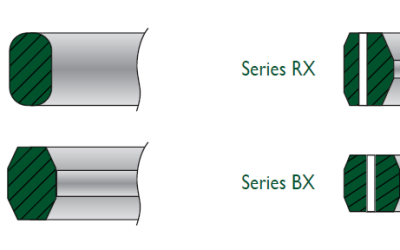

Aigi – Ring Joint
