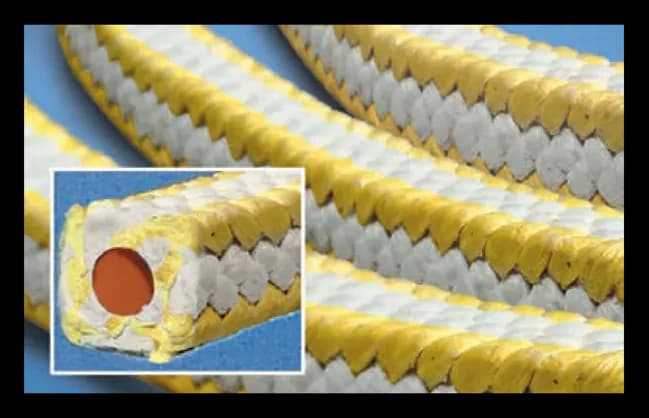

23SC Silicone-Core Abrasion-Resistant Packing
PTFE filament and aramid braid over a single silicone rubber core, for pumps, mixers and agitators in aggressive slurry applications. Rated to 260 °C, 25 kg/cm² and 10 m/s, pH 4 to 11.
- Maximum temperature
- 260°C (500°F)
- Maximum pressure
- 25kg/cm² (360 PSI)
- pH range
- 4 ~ 11
- Shaft speed
- 10m/s (2000 Ft/min)
- Fibre material
- PTFE Filament & Aramid Fiber with single silicone rubber core
- Lubricant
- Post-braiding PTFE lubricant
- Colour
- Yellow/White
- Typical equipment
- Pumps, mixers and agitators in aggressive slurry applications
- Industries
- Mining, power and sewage
Typical response within one working day. Cut-to-length and site support available.
