AIGI

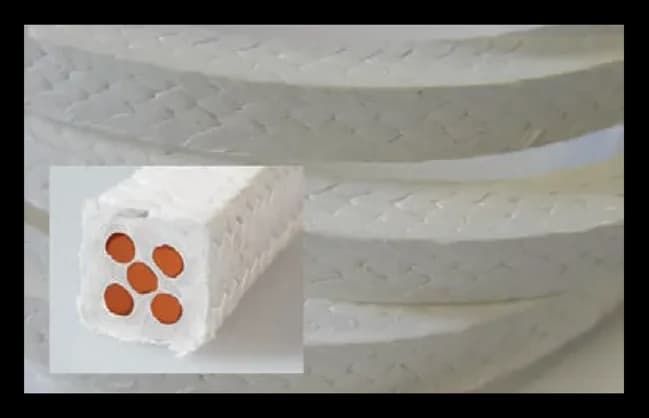

26WMSC Multi-Silicone-Core PTFE Valve Packing
PTFE fibre braid over multiple silicone rubber cores, for pumps, mixers and agitators with extreme runout problems. Rated to 260 °C and 10 m/s, 40 kgf/cm² rotating and 100 kgf/cm² reciprocating, pH 2 to 12.
- Maximum temperature
- 260°C (500°F)
- Maximum pressure
- 40 kgf/cm² (580 PSI)
- Reciprocating pressure
- 100 kgf/cm² (1450 PSI)
- pH range
- 2 ~ 12
- Shaft speed
- 10m/s (2000 Ft/min)
- Fibre material
- PTFE Fiber (White) with multi-silicone rubber cores
- Colour
- White
- Typical equipment
- Pumps, mixers and agitators with extreme runout problems
Typical response within one working day. Cut-to-length and site support available.
