ASPEN AEROGELS

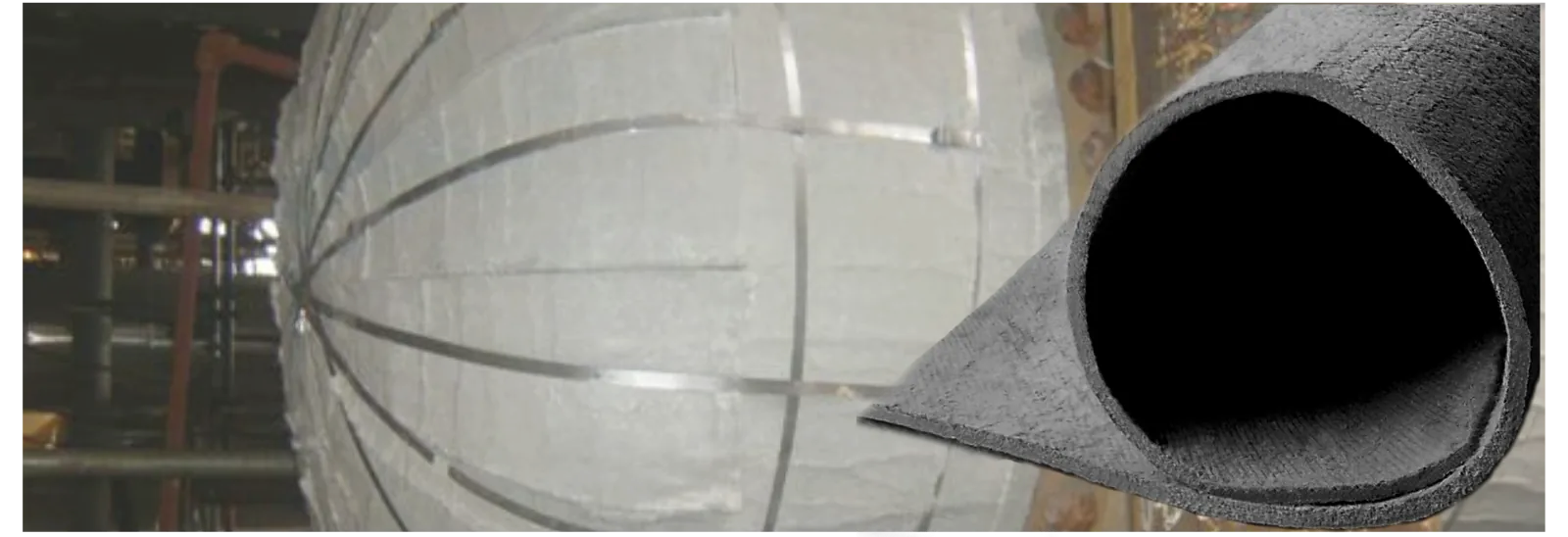

Pyrogel® XTF
Aerogel blanket rated to 650 °C (1200 °F) in a single 10 mm thickness. The datasheet adds passive fire protection to the thermal insulation and acoustic uses of the XTE, and names pool fire and jet fire protection and relief systems sizing to API 521 as its applications.
- Max. use temperature
- 650 °C (1200 °F)
- Optimal use
- Thermal insulation; passive fire protection; acoustics
- Applications
- Pool fire and jet fire protection; relief systems sizing (API 521)
- Colour
- Grey
- Density
- 12.5 lb/ft³ (0.20 g/cc)
- Thickness
- 10 mm (0.4 in)
- Roll size
- 850 sqft bulk rolls
Pyrogel® XTF thermal conductivity
geser →| Mean temperature °F / °C | k BTU·in/hr·ft²·°F / mW/m·K |
|---|---|
| 32 / 0 | 0.14 / 20 |
| 212 / 100 | 0.16 / 23 |
| 392 / 200 | 0.19 / 28 |
| 572 / 300 | 0.24 / 35 |
| 752 / 400 | 0.32 / 46 |
| 932 / 500 | 0.44 / 64 |
| 1112 / 600 | 0.62 / 89 |
Tested in accordance with ASTM C177. Thermal conductivity measured at a compressive load of 2 psi.
Angka sesuai publikasi prinsipal. Konfirmasikan pilihan akhir dengan lembar data terbaru sebelum memesan.
Typical response within one working day. Cut-to-length and site support available.
Produk terkait
All insulation →
ASPEN AEROGELS
Pyrogel® XTE
Flexible aerogel blanket for high-temperature pipe and vessel insulation.
ASPEN AEROGELS
Cryogel® Z
Hydrophobic aerogel blanket for sub-ambient and cold service.
AIGI

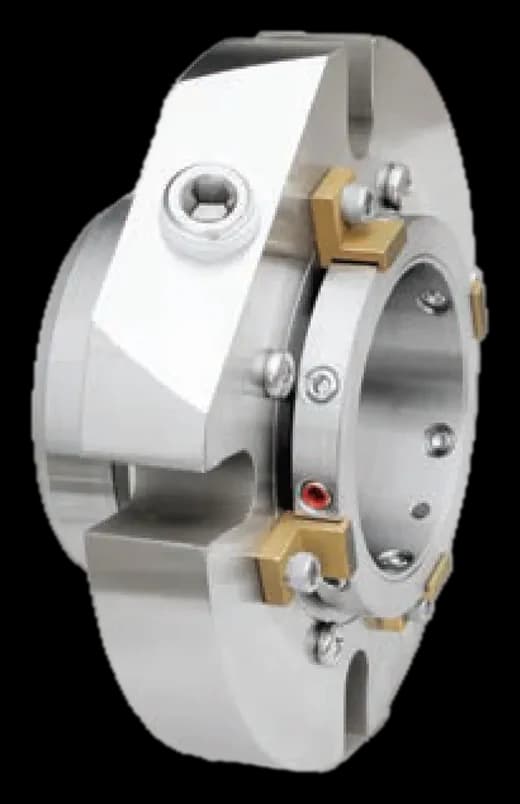

Cyclone 318J Self-Cleaning & Cooling Single Seal
Patented single seal that clears particles from the faces without flush water.
AIGI

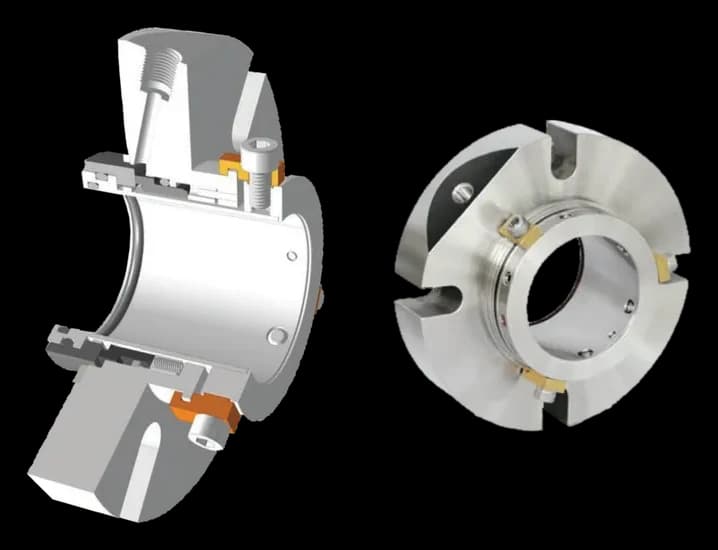

Cyclone 318T Self-Cooling Single Seal
