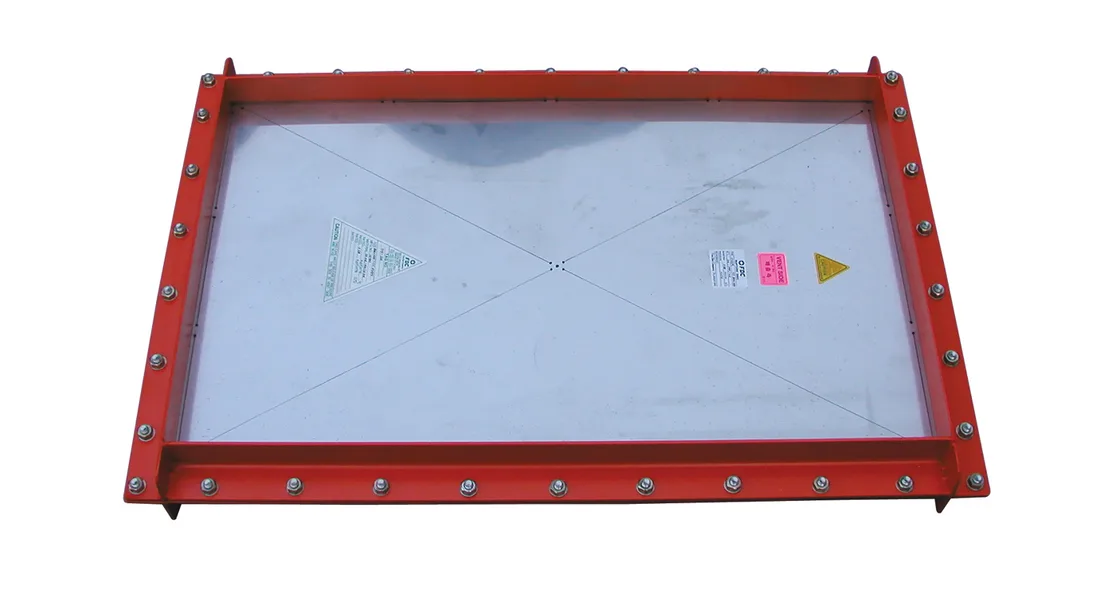

KSRPS Rectangular Explosion Panel, Flat

Rectangular flat explosion relief panel for silos, bag filters, RTO units, bucket elevators, ducts and hoppers. The rectangular form suits flat vessel walls and ductwork where a round panel will not fit.

Applicable equipment

Silo; bag filter; RTO; bucket elevator; duct; hopper; etc.

Service media

Dust; gas; powder; mixture

Set pressure

0.01 to 0.5 kg/cm²

Size

1400 × 2000 mm, per the FDC product list

Vacuum support required

Yes

Spark

No

Fragment

No

Max. operating ratio

50%

Service phase

Gas: yes; dust: yes

Features

Immediate operation and pressure relief at low pressure; quick opening to minimise damage caused by expanding gas; leak-proof design without fragment generation; easy replacement and low maintenance cost; quantity and installation position selectable depending on vessel size and contents
