KSRRK Reverse Dome Shear Rupture Disc

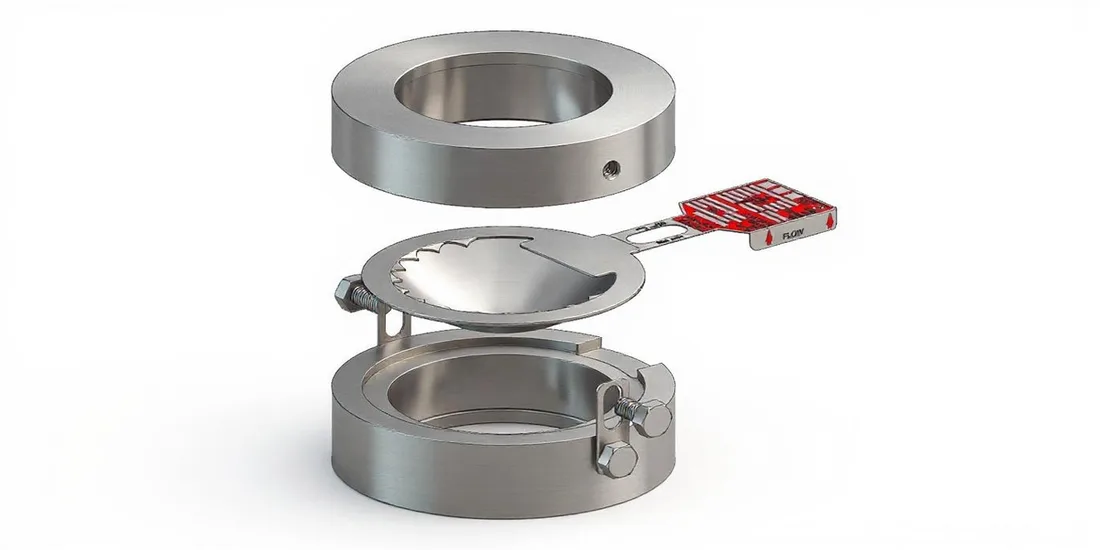

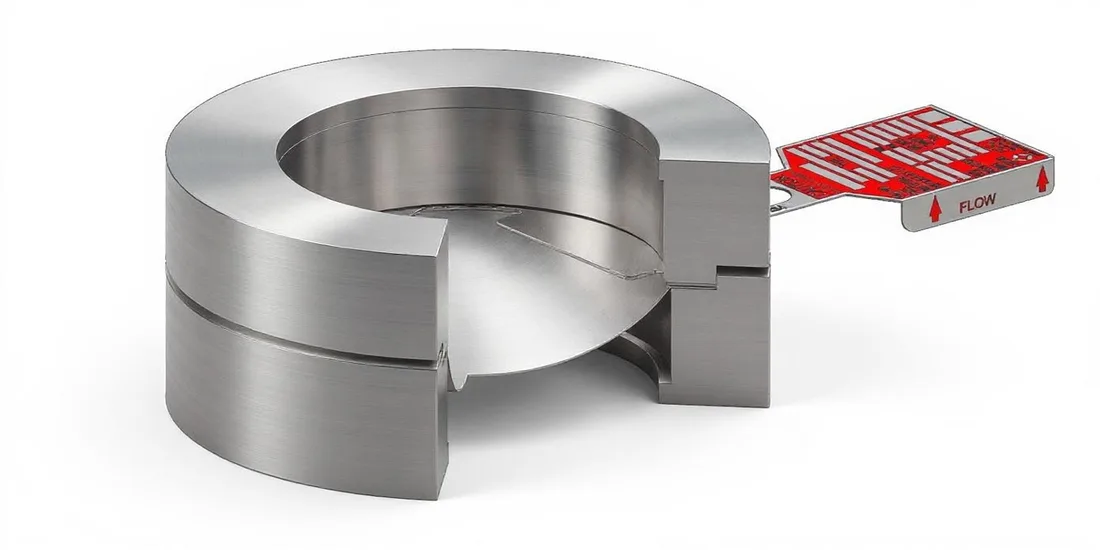

Reverse dome shear type rupture disc with disc and knife integrated, installed in the FDC standard holder. A knife ring on the upper disc shears the dome as it inverts. It carries the widest temperature range in the FDC flange range, and the datasheet notes it is easier to handle than the KSRR.

Design

Reverse dome shear type; disc and knife integrated; shear actuated structure ruptured by the knife ring attached to the upper disc as the dome is inverted

Installation

Installed and used in the FDC standard holder

Material

Stainless steel, Hastelloy, Monel, Nickel, Titanium, Tantalum, Duplex, special alloy, aluminium, etc.

Temperature

−200 °C to 600 °C

Set pressure

0.35 to 30 kg/cm²

Size

1/2" to 24" (15A to 600A)

Vacuum support required

No

Spark

No

Fragment

No

Max. operating ratio

90%

Service phase

Gas or vapour: yes; liquid: yes

Features

High safety and strong corrosion resistance; advantageous under back pressure, vacuum and pulsation conditions, no vacuum support required; wide operating temperature range; high operating ratio; easier handling compared to KSRR
