AIGI

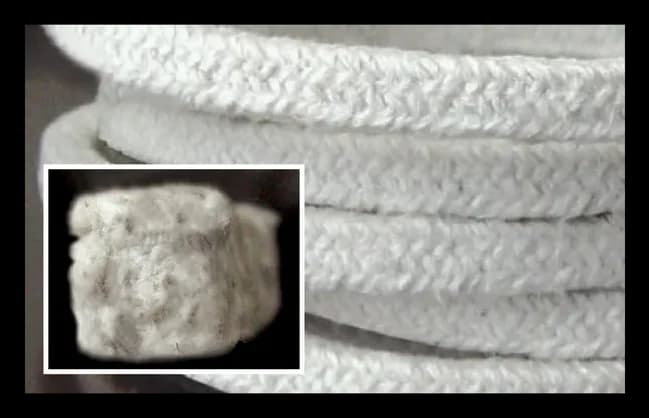

20 Extremely High-Temperature Packing
Ceramic fibre braided with corrosion-resistant metal wire, rated to 1260 °C at 5 kg/cm². A static sealing packing for oven and furnace doors, combustion chambers, boilers, chimney doors, manhole covers and hot air pipe flanges.
- Maximum temperature
- 1260°C (2300°F)
- Maximum pressure
- 5kg/cm² (70 PSI)
- pH range
- 2 ~ 13
- Fibre material
- Ceramic fiber & corrosion-resistant thin metal wire
- Colour
- White
- Typical equipment
- Hot air pipe flanges, oven doors, combustion chambers, boilers, chimney doors, tunnel furnaces, container doors, manhole covers and high-temperature flanges
Typical response within one working day. Cut-to-length and site support available.
