AIGI

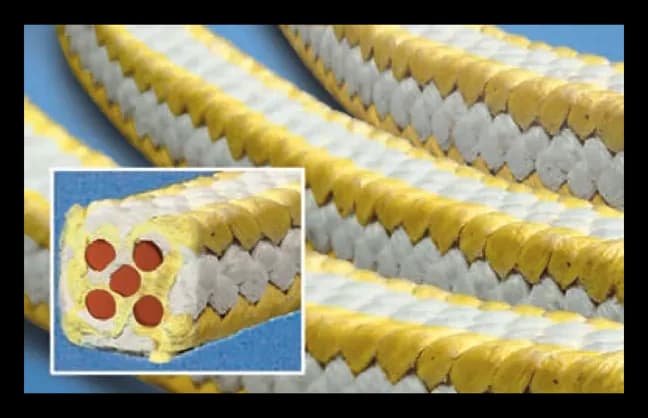

23MSC Multi-Silicone-Core Abrasion-Resistant Packing
PTFE filament and aramid braid over multiple silicone rubber cores, for pumps, mixers and agitators whose radial motion is extreme. Rated to 260 °C, 25 kg/cm² and 10 m/s, pH 4 to 11.
- Maximum temperature
- 260°C (500°F)
- Maximum pressure
- 25kg/cm² (360 PSI)
- pH range
- 4 ~ 11
- Shaft speed
- 10m/s (2000 Ft/min)
- Fibre material
- PTFE Filament & Aramid Fiber with multi-silicone rubber cores
- Lubricant
- Post-braiding PTFE lubricant
- Colour
- Yellow/White
- Typical equipment
- Pumps, mixers and agitators with extreme radial motion in slurry and abrasive applications
Typical response within one working day. Cut-to-length and site support available.
