AIGI

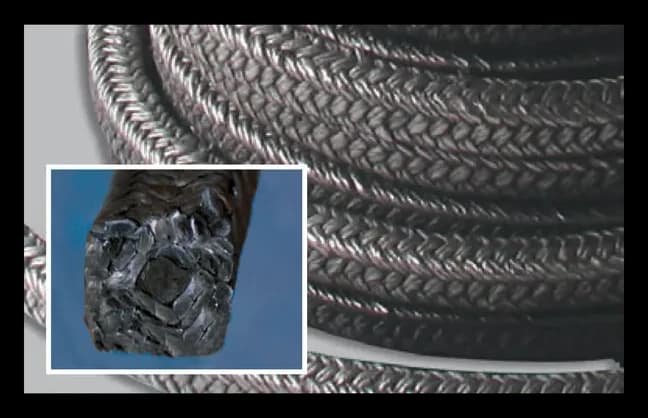

24 High-Temperature Pump Packing
Carbon fibre braid dipped in special lubricants, for high-speed and high-temperature pumps. Rated to 250 kg/cm² and 15 m/s across pH 1 to 13.
- Temperature (Steam)
- 565°C (1050°F)
- Temperature (Oxygen)
- 310°C (590°F)
- Maximum pressure
- 250kg/cm² (3600 PSI)
- pH range
- 1 ~ 13
- Shaft speed
- 15m/s (3000 Ft/min)
- Fibre material
- Carbon Fiber
- Lubricant
- Special lubricants (dipped)
- Colour
- Black
- Typical equipment
- High-speed and high-temperature pumps
- Industries
- Power, metals processing, and pulp and paper
Typical response within one working day. Cut-to-length and site support available.
