25 Series Special Aramid Packing

Model

Aramid fibre braid for aggressive abrasive and slurry pumps, mixers and agitators, rated to 240 °C and 10 m/s. Supplied plain as the 25, over a single silicone rubber core as the 25SC, or over several cores as the 25MSC for greater shaft movement.

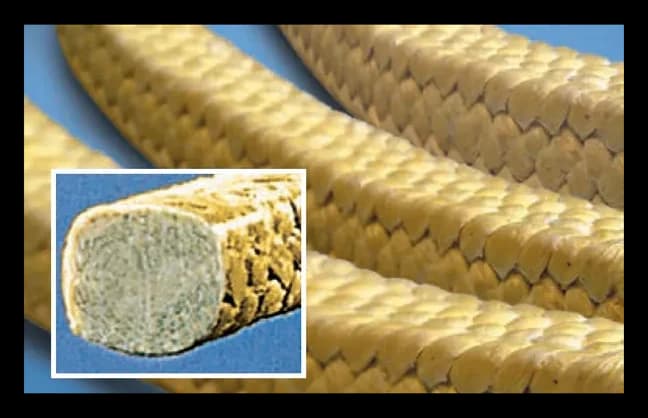

25 Special Aramid Packing. Aramid fibre braid for aggressive abrasive and slurry pumps, mixers and agitators. Rated to 240 °C and 10 m/s, 25 kgf/cm² rotating and 200 kgf/cm² reciprocating, pH 4 to 11.

Maximum temperature: 240°C (465°F)
Maximum pressure: 25kgf/cm² (360 PSI)
Reciprocating pressure: 200kgf/cm² (2900 PSI)
pH range: 4 ~ 11
Shaft speed: 10m/s (2000 Ft/min)
Fibre material: Aramid Fiber
Colour: Yellow
Typical equipment: Aggressive abrasive and slurry pumps, mixers and agitators
Industries: Mining, steel, sewage, and pulp and paper
