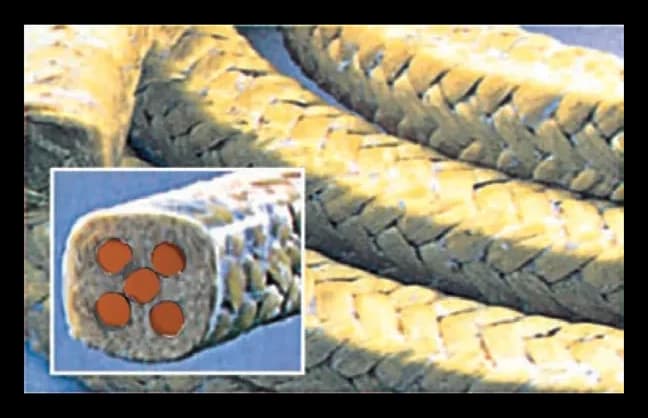

25MSC Multi-Silicone-Core Aramid Packing
Aramid fibre braid over multiple silicone rubber cores for pumps, mixers and agitators. Rated to 240 °C and 10 m/s, 25 kgf/cm² rotating and 200 kgf/cm² reciprocating, pH 4 to 11.
- Maximum temperature
- 240°C (465°F)
- Maximum pressure
- 25kgf/cm² (360 PSI)
- Reciprocating pressure
- 200kgf/cm² (2900 PSI)
- pH range
- 4 ~ 11
- Shaft speed
- 10m/s (2000 Ft/min)
- Fibre material
- Aramid Fiber with multi-silicone rubber cores
- Colour
- Yellow
- Typical equipment
- Pumps, mixers and agitators
- Industries
- Mining, steel, sewage, and pulp and paper
Typical response within one working day. Cut-to-length and site support available.
