26 Series General-Service Pump Packing
PTFE fibre and graphite braid for general service pumps, agitators and mixers. The 26 runs across the full pH range on chemicals, water, acids, alkalies and light slurries; the 26SC adds a silicone rubber core where radial runout is an issue, and the 26MSC several cores where it is extreme.

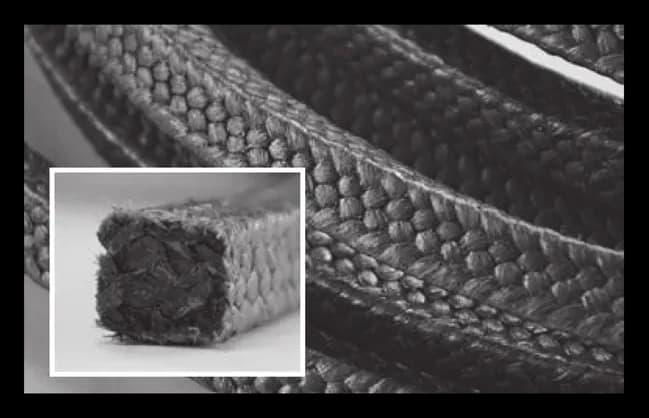

26 General-Service Pump Packing. PTFE fibre and graphite braid in a graphite dispersion, for general service pumps on chemicals, water, acids, alkalies and light slurries. Rated to 260 °C, 40 kg/cm² and 10 m/s across the full pH range.
- Maximum temperature
- 260°C (500°F)
- Maximum pressure
- 40 kg/cm² (580 PSI)
- pH range
- 0 ~ 14
- Shaft speed
- 10m/s (2000 Ft/min)
- Fibre material
- PTFE Fiber & graphite
- Lubricant
- Graphite dispersion
- Colour
- Black
- Typical equipment
- General service pumps
- Media
- Chemicals, water, acid, alkalies and light slurries
26SC Silicone-Core General-Service Packing. PTFE fibre and graphite braid over a single silicone rubber core, for general service pumps, agitators and mixers where radial runout is an issue. Rated to 260 °C, 40 kg/cm² and 10 m/s, pH 2 to 12.
- Maximum temperature
- 260°C (500°F)
- Maximum pressure
- 40 kg/cm² (580 PSI)
- pH range
- 2 ~ 12
- Shaft speed
- 10m/s (2000 Ft/min)
- Fibre material
- PTFE Fiber & graphite with single silicone rubber core
- Colour
- Black
- Typical equipment
- General service pumps, agitators and mixers where radial runout is an issue
26MSC Multi-Silicone-Core General-Service Packing. PTFE fibre and graphite braid over multiple silicone rubber cores, for pumps, mixers and agitators where extreme radial runout exists. Rated to 260 °C, 40 kg/cm² and 10 m/s, pH 2 to 12.
- Maximum temperature
- 260°C (500°F)
- Maximum pressure
- 40 kg/cm² (580 PSI)
- pH range
- 2 ~ 12
- Shaft speed
- 10m/s (2000 Ft/min)
- Fibre material
- PTFE Fiber & graphite with multi-silicone rubber cores
- Colour
- Black
- Typical equipment
- Pumps, mixers and agitators where extreme radial runout exists
Typical response within one working day. Cut-to-length and site support available.
