AIGI

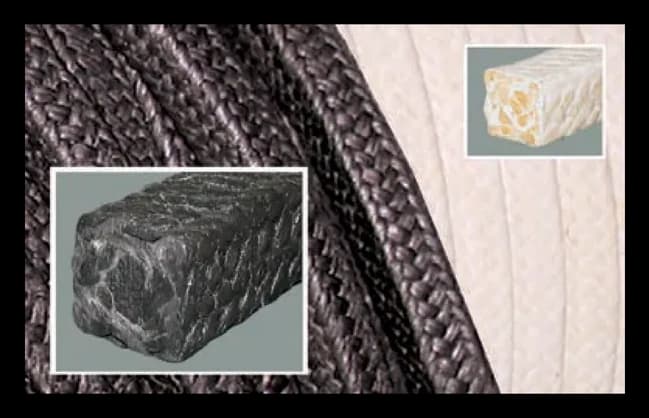

27 General-Service Pump Packing
Ramie fibre braid lubricated with graphite, for general service pumps on water, slurries and mild acids and alkalies. Rated to 150 °C and 12 m/s, pH 4 to 12.
- Maximum temperature
- 150°C (300°F)
- Pump pressure
- 40 kg/cm² (580 PSI)
- Valve pressure
- 80 kg/cm² (1160 PSI)
- pH range
- 4 ~ 12
- Shaft speed
- 12m/s (2500 Ft/min)
- Fibre material
- Ramie Fiber
- Lubricant
- Graphite
- Colour
- Black/White
- Typical equipment
- General service pumps
- Media
- Water, slurries and mild acids and alkalies
- Industries
- Mining, wastewater and sewage plants, municipal water plants, paper mills and marine
Typical response within one working day. Cut-to-length and site support available.
