AIGI

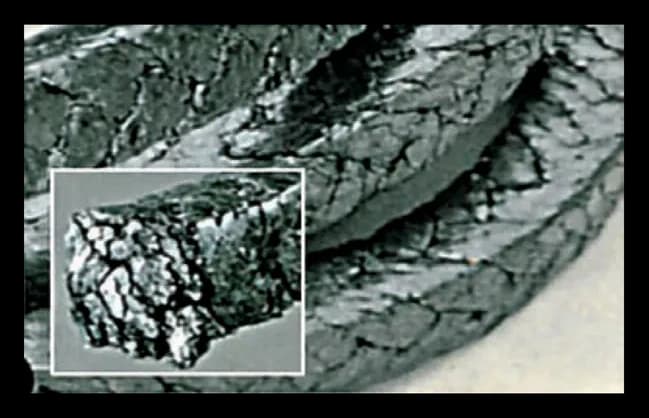

28 Universal Pump/Valve Packing
Carbon fibre reinforced flexible graphite yarn, for general service pumps and valves on water, steam and chemicals. Rated to 450 °C and 20 m/s, 100 kgf/cm² reciprocating, across the full pH range.
- Maximum temperature
- 450°C (850°F)
- Pump pressure
- 30 kgf/cm² (435 PSI)
- Valve pressure
- 200 kgf/cm² (2900 PSI)
- Reciprocating pressure
- 100 kgf/cm² (1450 PSI)
- pH range
- 0 ~ 14
- Shaft speed
- 20m/s (4000 Ft/min)
- Fibre material
- Graphite Fiber (carbon fiber reinforced flexible graphite yarn)
- Colour
- Black
- Typical equipment
- General service pumps and valves
- Media
- Water, steam and chemicals
Typical response within one working day. Cut-to-length and site support available.
