AIGI

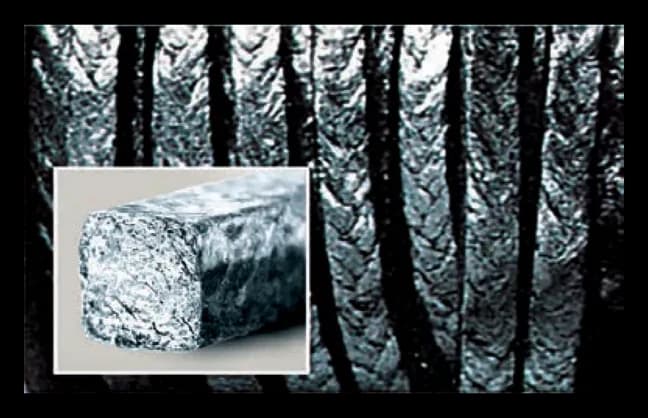

29 High-Temperature/High-Pressure Valve Packing
Nickel wire reinforced flexible graphite yarn in a nickel wire knit jacket, for high temperature and high pressure steam valves. Rated to 560 °C and 300 kg/cm² across the full pH range.
- Maximum temperature
- 560°C (1050°F)
- Maximum pressure
- 300 kg/cm² (4350 PSI)
- pH range
- 0 ~ 14
- Fibre material
- Nickel wire reinforced flexible graphite yarn in nickel wire knit jacket
- Colour
- Black
- Typical equipment
- High temperature/high pressure steam valves
- Media
- Steam and chemicals
- Industries
- Power plants, refineries, chemical and petrochemical plants
Typical response within one working day. Cut-to-length and site support available.
