AIGI

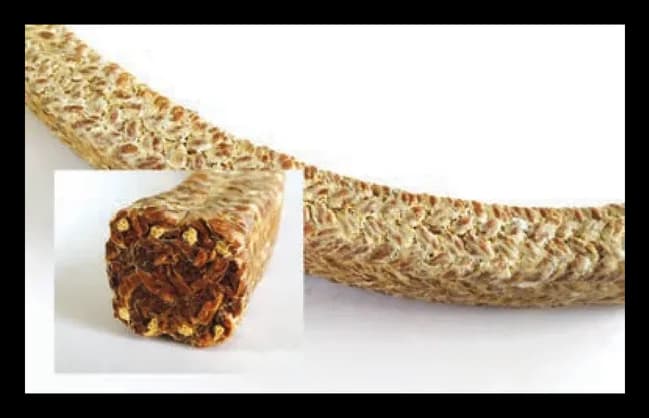

95 High-Efficiency Pump/Valve Packing
Phenolic fibre braid in a PTFE dispersion with a break-in lubricant, for high efficiency general service pumps. Rated to 260 °C, 15 kgf/cm² and 10 m/s, pH 0 to 13.
- Maximum temperature
- 260°C (500°F)
- Maximum pressure
- 15 kgf/cm² (220 PSI)
- pH range
- 0 ~ 13
- Shaft speed
- 10m/s (2000 Ft/min)
- Fibre material
- Phenolic Fiber
- Lubricant
- PTFE dispersion with break-in lubricant
- Colour
- Brown
- Typical equipment
- High efficiency general service pumps
- Media
- Water, mild chemicals and light slurries
Typical response within one working day. Cut-to-length and site support available.
