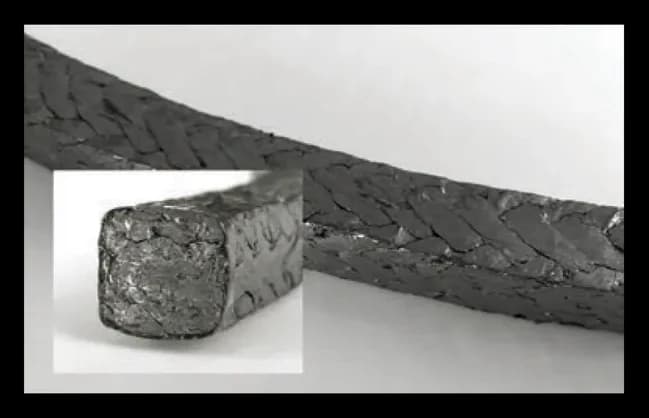

98 High-Temperature/High-Speed Pump & Valve Packing
Carbon fibre reinforced flexible graphite tape, for high temperature and high speed pumps and valves. Rated to 650 °C and 20 m/s, 200 kgf/cm² reciprocating, across the full pH range.
- Maximum temperature
- 650°C (1200°F)
- Reciprocating pressure
- 200 kgf/cm² (2900 PSI)
- pH range
- 0 ~ 14
- Shaft speed
- 20m/s (4000 Ft/min)
- Fibre material
- Graphite Fiber (carbon fiber reinforced flexible graphite tape)
- Colour
- Black
- Typical equipment
- High temperature and high speed pumps and valves
- Industries
- Power plants, chemical and petrochemical plants and refineries
Typical response within one working day. Cut-to-length and site support available.
