AIGI

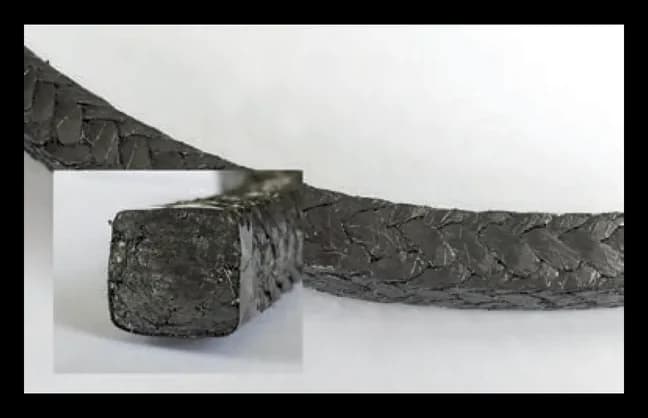

99 Super-High-Temperature/High-Pressure Valve Packing
Nickel wire mesh reinforced flexible graphite yarn for all types of valves on high temperature, high pressure steam and a wide range of chemicals. Rated to 300 kg/cm² across the full pH range.
- Maximum temperature (Steam)
- 650°C (1200°F)
- Maximum temperature (Oxygen)
- 455°C (850°F)
- Maximum pressure
- 300 kg/cm² (4400 PSI)
- pH range
- 0 ~ 14
- Fibre material
- Nickel wire mesh reinforced flexible graphite yarn
- Colour
- Black
- Typical equipment
- All types of valves
- Media
- High temperature/high pressure steam and a wide range of chemicals
- Industries
- Power plants, refineries, petrochemical and chemical plants
Typical response within one working day. Cut-to-length and site support available.
