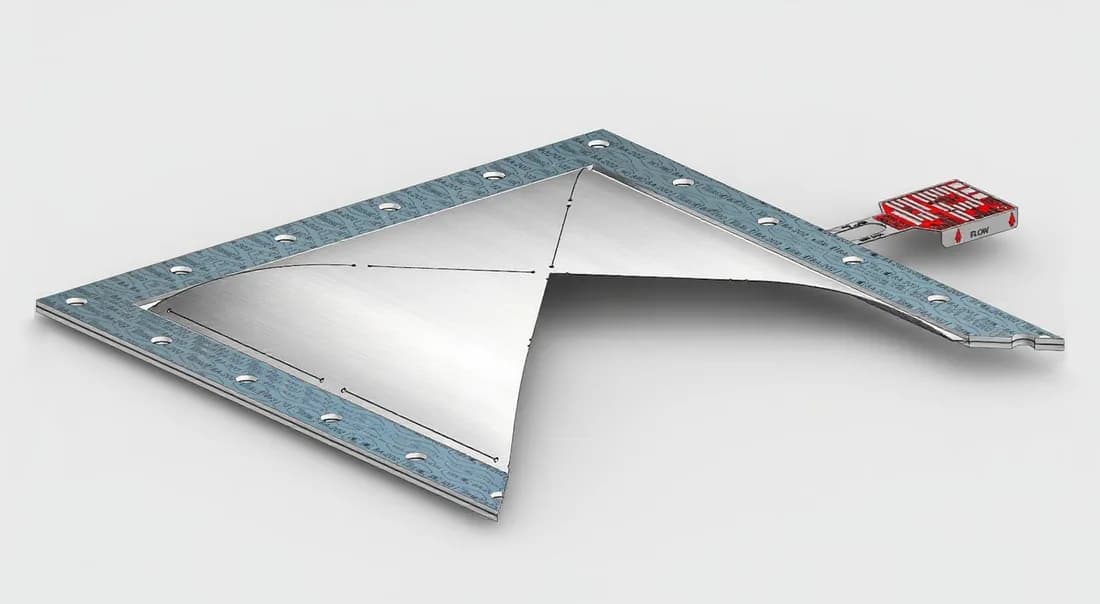

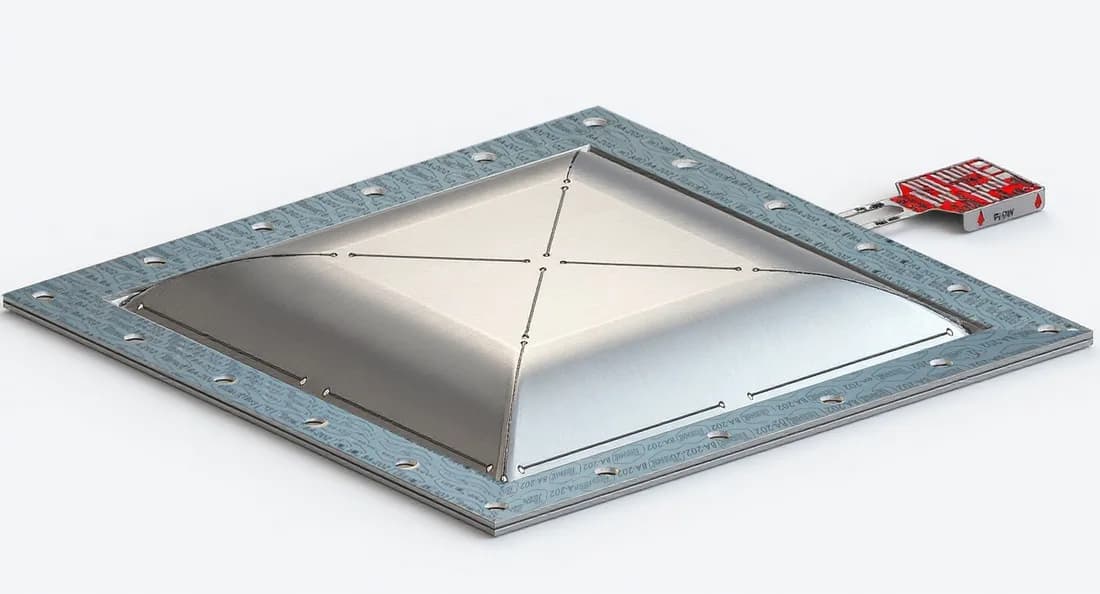

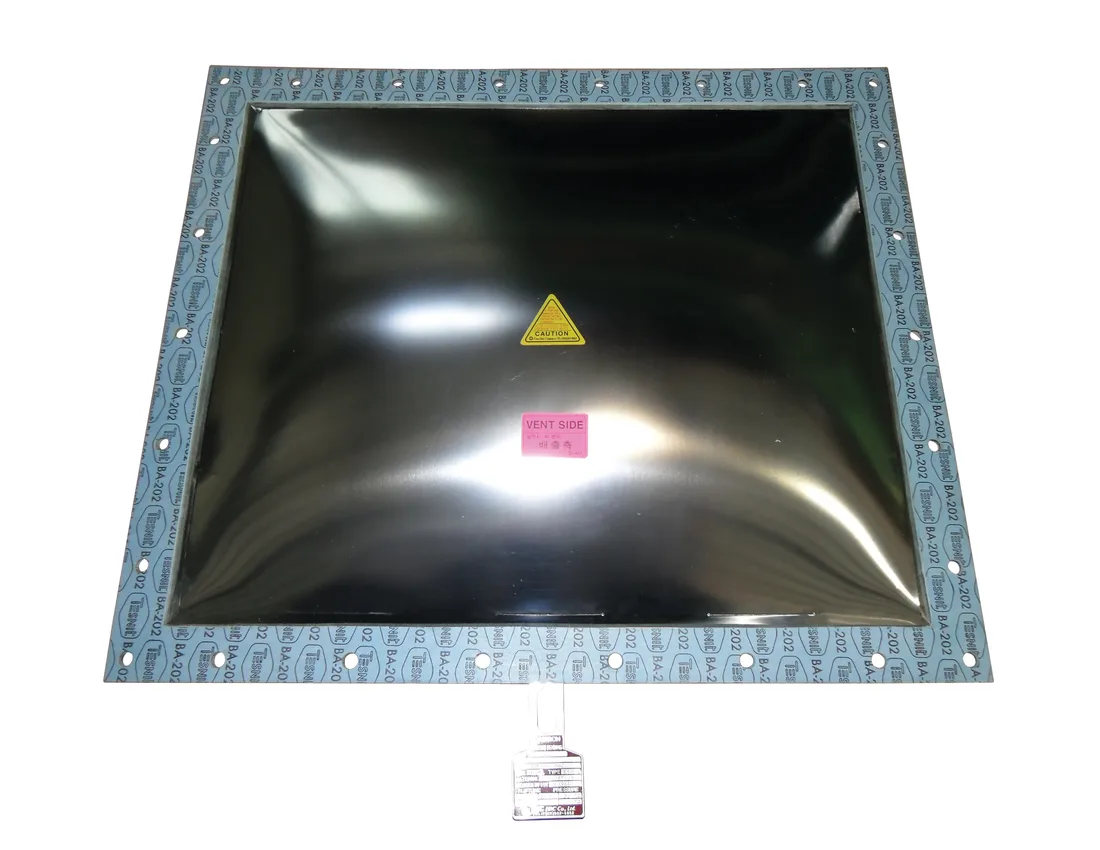

KSRPS-D Rectangular Explosion Panel, Dome

Rectangular dome explosion relief panel for silos, bag filters, RTO units, bucket elevators, ducts and hoppers. As with the round panels, the domed form carries a higher maximum operating ratio than the flat version.

Applicable equipment

Silo; bag filter; RTO; bucket elevator; duct; hopper; etc.

Service media

Dust; gas; powder; mixture

Set pressure

0.01 to 0.5 kg/cm²

Vacuum support required

Yes

Spark

No

Fragment

No

Max. operating ratio

80%

Service phase

Gas: yes; dust: yes

Features

Immediate operation and pressure relief at low pressure; quick opening to minimise damage caused by expanding gas; leak-proof design without fragment generation; easy replacement and low maintenance cost; quantity and installation position selectable depending on vessel size and contents
