ASPEN AEROGELS

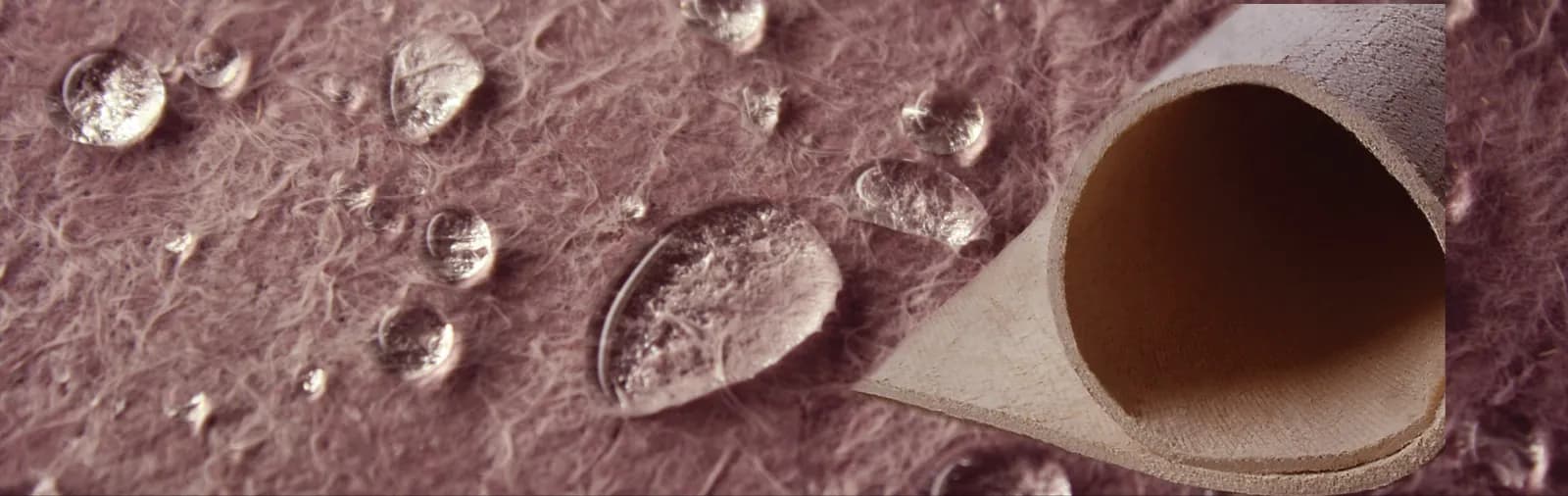

Pyrogel® XTE
Flexible aerogel blanket rated to 650 °C (1200 °F), supplied in 5 mm and 10 mm thicknesses as bulk rolls. The datasheet lists thermal insulation and acoustics as its optimal use, with CUI service, district energy and distillation as typical applications.
- Max. use temperature
- 650 °C (1200 °F)
- Optimal use
- Thermal insulation; acoustics
- Applications
- CUI service; district energy; distillation
- Colour
- Maroon
- Density
- 12.5 lb/ft³ (0.20 g/cc)
- Thickness
- 5 mm (0.2 in); 10 mm (0.4 in)
Pyrogel® XTE thickness and roll size
滑动 →| Thickness | Roll size |
|---|---|
| 5 mm (0.2 in) | 1,500 sqft bulk rolls |
| 10 mm (0.4 in) | 850 sqft bulk rolls |
*Nominal values
Pyrogel® XTE thermal conductivity
滑动 →| Mean temperature °F / °C | k BTU·in/hr·ft²·°F / mW/m·K |
|---|---|
| 32 / 0 | 0.14 / 20 |
| 212 / 100 | 0.16 / 23 |
| 392 / 200 | 0.19 / 28 |
| 572 / 300 | 0.24 / 35 |
| 752 / 400 | 0.32 / 46 |
| 932 / 500 | 0.44 / 64 |
| 1112 / 600 | 0.62 / 89 |
Tested in accordance with ASTM C177. Thermal conductivity measured at a compressive load of 2 psi.
数据以厂商公布为准。最终选型请在订购前对照当前数据表确认。
Typical response within one working day. Cut-to-length and site support available.
