AIGI

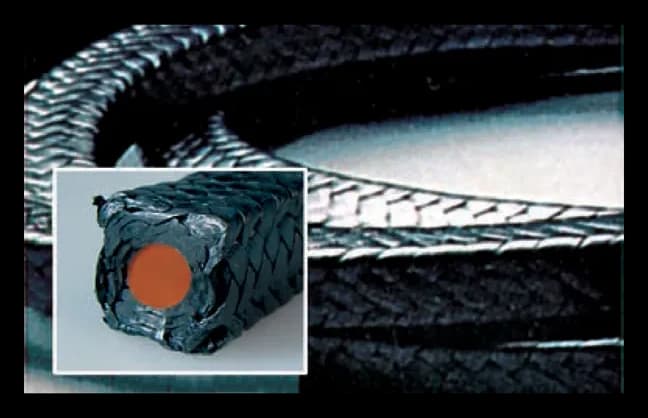

26SC Silicone-Core General-Service Packing
PTFE fibre and graphite braid over a single silicone rubber core, for general service pumps, agitators and mixers where radial runout is an issue. Rated to 260 °C, 40 kg/cm² and 10 m/s, pH 2 to 12.
- Maximum temperature
- 260°C (500°F)
- Maximum pressure
- 40 kg/cm² (580 PSI)
- pH range
- 2 ~ 12
- Shaft speed
- 10m/s (2000 Ft/min)
- Fibre material
- PTFE Fiber & graphite with single silicone rubber core
- Colour
- Black
- Typical equipment
- General service pumps, agitators and mixers where radial runout is an issue
Typical response within one working day. Cut-to-length and site support available.
