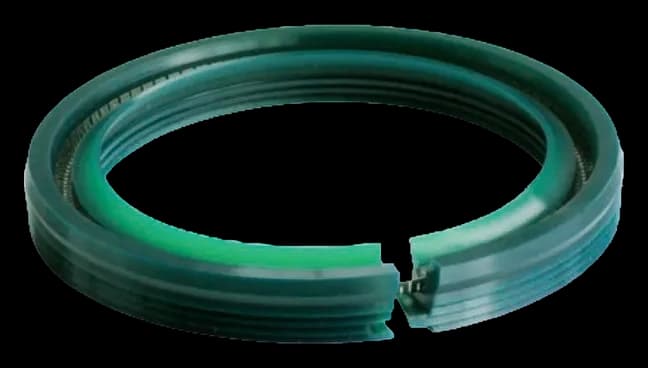

522S-PU Wedge-Cut Spring-Energized Rotary Seal
Wedge-cut spring-energised seal in polyurethane, for large-diameter, low-speed equipment with poor concentricity and large runout. Shafts of 20 mm and up, to 3 m/s, runout to 0.3 mm.
- Temperature range
- -30~80°C
- Shaft speed
- ≤ 3m/s
- Shaft runout
- ≤ 0.3mm
- Shaft diameter
- d ≥ 20
- Outer diameter
- D ≤ 2000
- Radial width
- H ≥ 7.5
- Axial thickness
- L ≥ 7
- Material
- PU
- Sealing technology
- Patented reverse wedge cutting and spring-energized; OD live-loading tighten design
- Typical equipment
- Large-diameter, low-speed, poor-concentricity and large-run-out equipment
Typical response within one working day. Cut-to-length and site support available.
