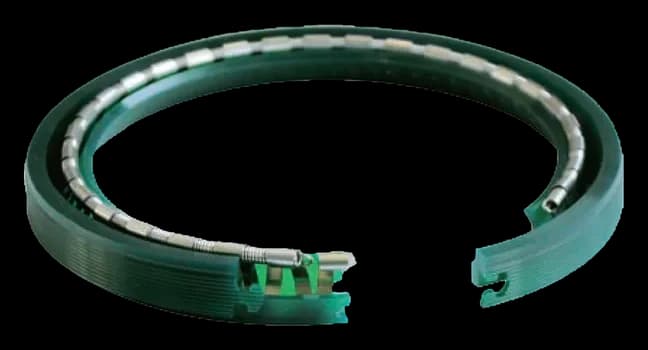

5505Z Large-Runout Arrowhook Split Rotary Seal

Arrowhook split seal for large-runout equipment on shafts of 180 mm and up, tolerating runout to 2 mm. Supplied in PU to 3 m/s, NBR to 10 m/s or FKM to 15 m/s.

Temperature range

-30~80°C (PU), -35~110°C (NBR), -20~160°C (FKM)

Shaft speed

≤ 3m/s (PU), ≤ 10m/s (NBR), ≤ 15m/s (FKM)

Shaft runout

≤ 2mm

Shaft diameter

d ≥ 180

Outer diameter

D ≤ 2000

Radial width

H ≥ 15

Axial thickness

L ≥ 15

Material

PU / NBR / FKM

Typical equipment

Larger-run-out equipment
