Dolphinflex® Green Composite Hose

Composite hose for chemicals that do not attack the polypropylene lining or the stainless steel 316 wires. Both inner and outer wires are stainless steel 316, with no galvanized option.

Application: Suction and discharge of various chemicals which do not affect the polypropylene lining and the stainless steel 316 inner wires

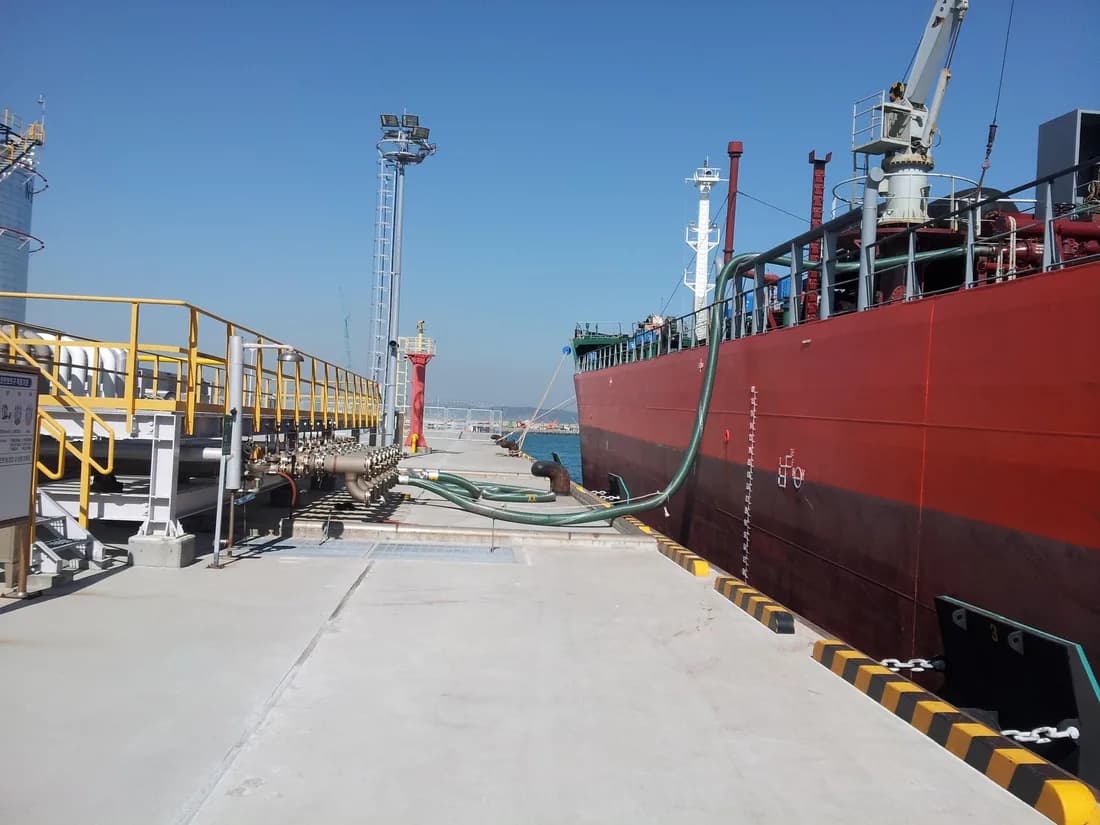

Service: Ship to shore; tank truck; railcar; petrochemical plant; loading & unloading of chemical cargoes
Inner wire: Stainless steel 316
Outer cover: Polyester PVC coated, green colour
Lining: Polypropylene fabrics
Outer wire: Stainless steel 316
Temperature range: −30 °C to +80 °C
Max. elongation: 10% on proof pressure
Min. burst pressure: 5x working pressure (safety factor 5:1)
Electrical resistance: ≤ 2.5 Ohm/m for under 50 mm (2"); ≤ 1.0 Ohm/m for over 50 mm (2")
Regulation: EN13765:2010 (thermoplastic multi-layer non-vulcanized hoses and hose assemblies for the transfer of hydrocarbons, solvents and chemicals)

Dolphinflex® Green specification

swipe →

Bore diameter in / mm	Max. working pressure bar / psi	Bend radius in / mm	Max. weight kg/m / lbs/ft	Max. length m / ft
1 / 25	10.5 / 150	7.9 / 200	1.4 / 0.93	21 / 69
1.5 / 40	10.5 / 150	7.9 / 200	1.6 / 1.07	21 / 69
2 / 50	10.5 / 150	8.9 / 225	3 / 2	25 / 82
2.5 / 65	10.5 / 150	8.9 / 225	3 / 2	25 / 82
3 / 80	14 / 200	14.0 / 350	5.2 / 3.47	30 / 98
4 / 100	14 / 200	16.0 / 400	7.8 / 5.2	30 / 98
5 / 125	14 / 200	23.0 / 575	10 / 6.67	30 / 98
6 / 150	14 / 200	23.0 / 575	12 / 8	30 / 98
8 / 200	14 / 200	31.5 / 800	18.5 / 12.3	30 / 98
10 / 250	10.5 / 150	39.5 / 1000	23.5 / 15.67	25 / 82
12 / 300	10.5 / 150	47.5 / 1200	30 / 20	15 / 49
