AIGI
522 Composite Rotary Seal
Model
Composite rotary seal for shafts of 20 mm and up: in polyurethane as the 522-PU, rated to 3 m/s with runout to 0.6 mm, or in NBR as the 522-N, rated to 10 m/s with runout to 0.5 mm.
522-PU Composite Rotary Seal. Composite rotary seal in polyurethane for shafts of 20 mm and up, rated to 3 m/s with runout to 0.6 mm.
- Temperature range
- -30~80°C
- Shaft speed
- ≤ 3m/s
- Shaft runout
- ≤ 0.6mm
- Shaft diameter
- d ≥ 20
- Outer diameter
- D ≤ 2000
- Radial width
- H ≥ 7.5
- Axial thickness
- L ≥ 7
- Material
- PU
522-N Composite Rotary Seal. Composite rotary seal in NBR for shafts of 20 mm and up, rated to 10 m/s with runout to 0.5 mm.
- Temperature range
- -35~110°C
- Shaft speed
- ≤ 10m/s
- Shaft runout
- ≤ 0.5mm
- Shaft diameter
- d ≥ 20
- Outer diameter
- D ≤ 1500
- Radial width
- H ≥ 7.5
- Axial thickness
- L ≥ 7
- Material
- NBR
Typical response within one working day. Cut-to-length and site support available.
Related products
All sealing device →
AIGI
Fishbone Gasket
Self-energised metal gasket replacing spiral wound and camprofile.
AIGI

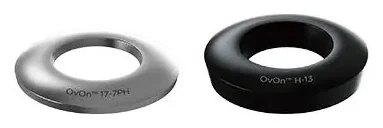

OvOn™ Bidirectional Live-Loading Disc Springs
