OvOn™ Bidirectional Live-Loading Disc Springs
型号
Internationally patented live-loading disc spring that works both ways: it can go downward to absorb a sudden pressure surge or temperature increase, and upward to compensate bolt relaxation, where conventional disc springs, stretching nuts and stretching bolts compensate upward only. Each spring is designed twice, with a first stage that reaches the standard bolt load required and a second stage that edges toward bolt yield strength. Made as 17-7PH for ordinary stainless steel or grade 4.6 bolts and H-13 for grade 8.8, A193-B7 or SAE 8 bolts, and both can be nickel plated against chloride-ion corrosion.
- Applications
- Ordinary stainless steel bolts or grade 4.6 bolts
- Temperature range
- -200 ~ 330°C
- Sizes
- M10 (3/8") to M76 (3")
- Design points
- Inflection point A: from one foot standing to two feet standing, OvOn™ reaches standard bolt load required; max point B: from two feet standing to total flat, OvOn™ edges toward bolt yield strength
- Surface treatment
- Oxidation for corrosion prevention
- Nickel plating

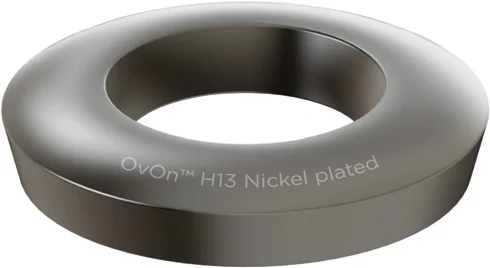

- Both models can be nickel plated against chloride-ion corrosion in chemical environment
- Installation guide
- Refer to STILL® installation video guide
- Applications
- Grade 8.8, A193-B7 or SAE 8 preload bolts
- Temperature range
- -156 ~ 600°C
- Sizes
- M10 (3/8") to M100 (4")
- Design points
- Inflection point A: from one foot standing to two feet standing, OvOn™ reaches standard bolt load required; max point B: from two feet standing to total flat, OvOn™ edges toward bolt yield strength
- Surface treatment
- Oxidation for corrosion prevention
- Nickel plating
- Both models can be nickel plated against chloride-ion corrosion in chemical environment
- Installation guide
- Refer to STILL® installation video guide

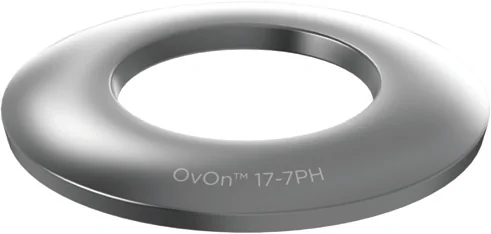

OvOn™ 17-7PH spring specifications
滑动 →| Size | Recommended torque Nm ±10% | Preload, first stage N ±10% | Bolt yield load, second stage N ±10% |
|---|---|---|---|
| M10 (3/8") | 15 | 8369 | 11068 |
| M12 | 28 | 12893 | 17275 |
| 1/2" (12.7mm) | 32 | 13943 | 18767 |
| M14 | 44 | 17431 | 23665 |
| M16 (5/8") | 65 | 22534 | 31004 |
| M18 | 92 | 28293 | 39457 |
| 3/4" (19.1mm) | 108 | 31493 | 44235 |
| M20 | 128 | 35495 | 50183 |
| M22 (7/8") | 170 | 42992 | 61632 |
| M24 | 215 | 49703 | 72263 |
| 1" (25.4mm) | 249 | 54556 | 80115 |
| M27 | 308 | 63398 | 94178 |
| 1 1/8" (28.6mm) | 358 | 69573 | 104544 |
| M30 | 409 | 75679 | 114920 |
| M32 (1 1/4") | 491 | 85942 | 132219 |
| M33 | 544 | 91549 | 142179 |
| M35 (1 3/8") | 650 | 103515 | 163140 |
| M36 | 723 | 111577 | 177312 |
| M39 (1 1/2") | 876 | 125723 | 204064 |
| M42 (1 5/8") | 1090 | 144819 | 247226 |
| M45 (1 3/4") | 1301 | 161568 | 275381 |
| M48 (1 7/8") | 1594 | 185219 | 324009 |
| 2" (50.8mm) | 1867 | 204133 | 366439 |
| M52 | 2010 | 214705 | 389509 |
| M56 (2 1/4") | 2494 | 244861 | 462960 |
| M64 (2 1/2") | 3378 | 293211 | 595131 |
| M70 (2 3/4") | 4215 | 334915 | 722142 |
| M72 (2 7/8") | 4587 | 351469 | 779036 |
| M76 (3") | 5117 | 373572 | 861442 |

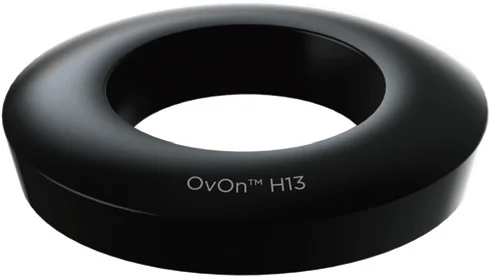

OvOn™ H-13 spring specifications
滑动 →| Size | Recommended torque Nm ±10% | Preload, first stage N ±10% | Bolt yield load, second stage N ±10% |
|---|---|---|---|
| M10 (3/8") | 38 | 21237 | 38334 |
| M12 | 71 | 33032 | 59661 |
| 1/2" (12.7mm) | 82 | 35844 | 64752 |
| M14 | 114 | 45098 | 81500 |
| M16 (5/8") | 170 | 58882 | 106472 |
| M18 | 242 | 74679 | 135116 |
| 3/4" (19.1mm) | 287 | 83572 | 151251 |
| M20 | 341 | 94654 | 171356 |
| M22 (7/8") | 459 | 115849 | 209851 |
| M24 | 585 | 135362 | 245343 |
| 1" (25.4mm) | 684 | 149703 | 271452 |
| M27 | 853 | 175493 | 318369 |
| 1 1/8" (28.6mm) | 999 | 194273 | 352606 |
| M30 | 1150 | 213023 | 386805 |
| M32 (1 1/4") | 1396 | 244336 | 443901 |
| M33 | 1557 | 262163 | 476472 |
| M35 (1 3/8") | 1885 | 299794 | 545187 |
| M36 | 2107 | 325217 | 591618 |
| M39 (1 1/2") | 2512 | 360544 | 656314 |
| M42 (1 5/8") | 3291 | 437436 | 797211 |
| M45 (1 3/4") | 4003 | 497276 | 907113 |
| M48 (1 7/8") | 5007 | 581834 | 1062414 |
| 2" (50.8mm) | 5984 | 654466 | 1196200 |
| M52 | 6497 | 694149 | 1269228 |
| M56 (2 1/4") | 8332 | 818159 | 1498239 |
| M58 | 9023 | 864266 | 1583424 |
| M64 (2 1/2") | 11950 | 1037367 | 1904419 |
| M70 (2 3/4") | 15668 | 1244844 | 2289984 |
| M72 (2 7/8") | 17443 | 1336364 | 2460567 |
| M76 (3") | 20104 | 1467673 | 2705768 |
| M80 (3 1/8") | 23358 | 1622084 | 2994616 |
| M82 (3 1/4") | 25259 | 1705597 | 3151389 |
| M85 (3 3/8") | 27867 | 1821362 | 3368635 |
| M90 (3 1/2") | 32278 | 1999147 | 3703888 |
| M95 (3 3/4") | 38454 | 2245805 | 4169391 |
| M100 (4") | 45406 | 2502535 | 4656159 |
数据以厂商公布为准。最终选型请在订购前对照当前数据表确认。
