Dolphinflex® LPG Composite Hose

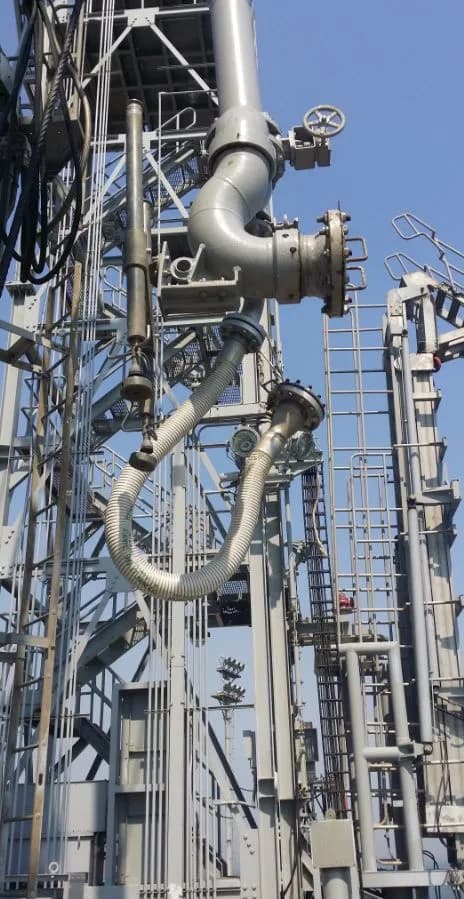

Polyamide-lined composite hose for liquefied gas transfer including ammonia, propane, butadiene, vinyl chloride and refrigerant gases. Carries the highest working pressure in the range at 21 bar, and is rated to −105 °C for liquid ethylene.

Application: Transfer of ammonia, acetaldehyde, butane butadiene, propane, butylene, dimethylamine, ethylamine, ethyl chloride, methyl acetylene, methyl bromide propane, propylene propadiene, vinyl chloride, refrigerant gases. Liquid ethane at −88 °C, ethylene at −105 °C
Inner wire: Stainless steel 316
Outer cover: Polyamide, white colour
Lining: Polyamide fabrics
Outer wire: Stainless steel 316
Temperature range: −50 °C to +50 °C; −105 °C to +50 °C for liquid ethylene
Max. elongation: 10% on proof pressure
Min. burst pressure: 5x working pressure (safety factor 5:1)
Electrical resistance: ≤ 2.5 Ohm/m for under 50 mm (2"); ≤ 1.0 Ohm/m for over 50 mm (2")
Regulation: EN13766:2010 (thermoplastic multilayer non-vulcanized hoses and hose assemblies for the transfer of liquid petroleum gas and liquefied natural gas)

Dolphinflex® LPG specification

swipe →

Bore diameter in / mm	Max. working pressure bar / psi	Bend radius in / mm	Max. weight kg/m / lbs/ft	Max. length m / ft
1 / 25	21 / 319	5.9 / 150	0.9 / 0.6	21 / 69
1.5 / 40	21 / 319	7.9 / 200	1.5 / 1	21 / 69
2 / 50	21 / 319	7.9 / 200	2.3 / 1.53	25 / 82
2.5 / 65	21 / 319	7.9 / 200	4 / 2.67	25 / 82
3 / 80	21 / 319	10 / 250	5.4 / 3.6	30 / 98
4 / 100	21 / 319	20 / 500	6.7 / 4.47	30 / 98
5 / 125	21 / 319	22 / 550	10 / 6.67	30 / 98
6 / 150	21 / 319	26 / 660	15 / 10	30 / 98
8 / 200	21 / 319	36 / 910	20.1 / 13.4	30 / 98
10 / 250	10.5 / 150	59 / 1500	30.4 / 20.27	25 / 82
12 / 300	10.5 / 150	100 / 2500	35.4 / 23.6	15 / 49
