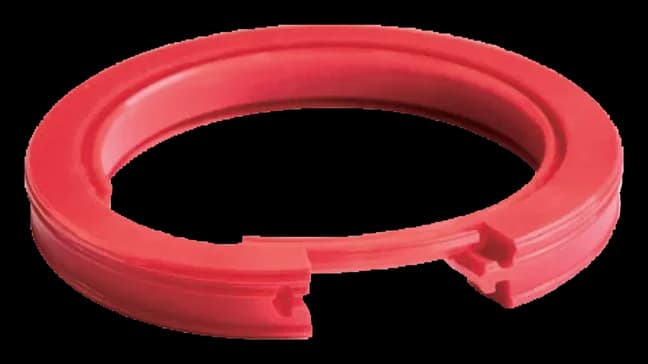

5505 Arrowhook Split Rotary Seal

Split rotary seal in polyurethane with the Arrowhook joint, for low-runout equipment on shafts of 20 mm and up. Rated to 3 m/s with runout to 0.2 mm.

Temperature range

-30~80°C

Shaft speed

≤ 3m/s

Shaft runout

≤ 0.2mm

Shaft diameter

d ≥ 20

Outer diameter

D ≤ 400

Radial width

H ≥ 10

Axial thickness

L ≥ 11

Material

PU

Design

Double split at 55 & 5 o'clock, ball & socket duo-lock, inner & outer ring structure

Typical equipment

Low-run-out equipment
