AIGI

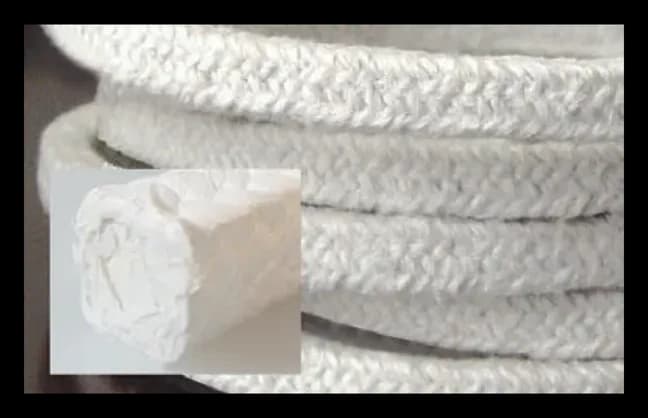

97W Synthetic Multi-Service Packing
Synthetic composite yarn with a break-in lubricant, for mild acids and caustics, brine, gases, oils, steam and non-abrasive water service. Rated to 230 °C, 18 kgf/cm² and 10 m/s, pH 4 to 14.
- Maximum temperature
- 230°C (450°F)
- Maximum pressure
- 18 kgf/cm² (250 PSI)
- pH range
- 4 ~ 14
- Shaft speed
- 10m/s (2000 Ft/min)
- Fibre material
- Synthetic Composite Yarn
- Lubricant
- Specially formulated break-in lubricant
- Colour
- White
- Media
- Mild acids & caustics, brine, gases, oils, steam, non-abrasive water based services
- Industries
- General chemical plant applications
Typical response within one working day. Cut-to-length and site support available.
